Single Jacket Fire Hoses lined with Polyurethane (PU) lining, American standards

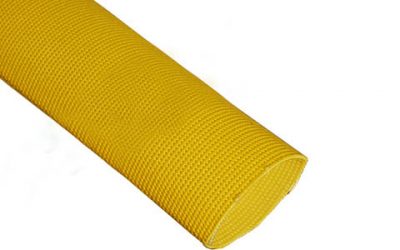

Ironman AUS is designed for fire-fighting application in compliance with American standards. Ironman AUS is recommended for American market. Ironman AUS is a polyester single jacket style hose with a Polyurethane (PU/TPU) liner that can also handle some chemicals and petroleum based products. It can be coated with Asoe’s optional Polyurethane-based Durablux™ treatment for a higher level of heat and abrasion resistance.
Application: Suitable for military, industrial and municipal fire brigades, marine fire fighting, etc.
Inner tube: PU lining
Jacket: Single jacket, circular woven polyester jacket, plain weave, warp yarn is made of spun polyester yarn, strips available per request
Operating Temperature Range: -40° to 150°F (-40° to 65°C) based on water
Standard Color: (no coating), yellow, red, other colors (coated with Durablux™) available per request..
Standard Length: 50ft, 100ft; other lengths available per request;
Couplings: Aluminum or Brass NH/NST couplings, Camlock, and pinlug couplings etc.
Standards: UL19, FM2111, andNFPA1961 etc.
Hose ID | Working Pressure | Bursting Pressure | |
Inch | mm | PSI/bar | PSI/bar |
1″ | 26 | 250/17, 300/21 | 750/51, 900/63 |
1 1/2″ | 39 | 250/17, 300/21 | 750/51, 900/63 |
1 3/4″” | 45 | 250/17, 300/21 | 750/51, 900/63 |
2″ | 52 | 250/17, 300/21 | 750/51, 900/63 |
2 1/2″ | 65 | 250/17, 300/21 | 750/51, 900/63 |
3″ | 78 | 250/17, 300/21 | 750/51, 900/63 |
