Single Jacket Fire Hoses lined with EPDM Rubber lining, European standard

Ironman EES is designed for the fire-fighting application in compliance with European standards, such as DIN14811, EN14540, BS6391 Type I and Type II etc. Ironman EES is recommended for European market, Asian market, Australian market and African market.

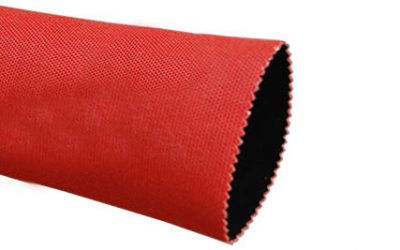

Ironman EES is a polyester single jacket style hose with an EPDM rubber liner that can also handle some chemicals and petroleum based products. It can be coated with Asoe’s optional Polyurethane-based Durablux™ treatment for a higher level of heat and abrasion resistance.

Application: Suitable for military, industrial and municipal fire brigades, marine fire fighting, etc.
Inner tube: EPDM rubber lining
Jacket: Single Jacket, circular woven polyester jacket, twill weave, 100% filament polyester yarn; color strips are available for request.
Operating Temperature Range: -40° to 150°F (-40° to 65°C)based on water
Standard Color: White (no coating), yellow, red, other colors (coated with Durablux™) available per request.
Standard Length: 15m, 20m, 30m, 50m; other lengths available per request;
Couplings: Aluminum or Brass Instantaneous Couplings, Storz, Guillemin Couplings, Gost Couplings etc.
Standards: Meets or Exceeds EN14540, DIN14811, MED, BS6391 type I and II etc.



Hose ID Working Pressure Bursting Pressure
Inch mm bar bar
1″ 26 15, 16, 20 45, 48, 60
1 1/2″ 39 15, 16, 20 45, 48, 60
1 3/4″” 45 15, 16, 20 45, 48, 60
2″ 52 15, 16, 20 45, 48, 60
2 1/2″ 65 15, 16, 20 45, 48, 60
3″ 78 15, 16, 20
