Description

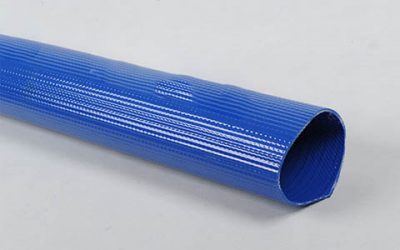

Irrigator PU is made from extruded thermoplastic polyether based polyurethane (TPU) with excellent wear & tear properties. The reinforcement is made from circular woven filament polyester yarn. The “extrusion through the weave” production method gives a very strong bonding between cover and lining as well as firmly encapsulating the woven polyester.

Irrigator PU has better performance in abrasion-resistance compared with ordinary NBR layfat irrigator hoses. If the operating environment is harsh, Irrigator PU hoses are recommended. If irrigator travels on grassland, Wovenflex Extra or Longman Agro is recoomended because of economy of Wovenflex Extra and Longman Agro..

Irrigator PU hoses are usually dragged by travelling irrigator.

Applications

  • Water irrigation

Features

  • Superior abrasion resistance

  • Extremely hardwearing and durable for long service life

  • Resistance to weathering and ozone

  • Flexible, lightweight and good handling

Comparable to

  • IR Blue Irrigation Hose of Parker Snaptite

Color

  • Blue (Other color available of request)

Technical Sepcification



Norminal size ID Working Pressuer Bursting pressure Weight
Inch mm lbs/ft kg/m
1 1/2″ 38 300psi/21bar 900psi/63bar 0.22 0.33
2″ 51 300psi/21bar 900psi/63bar 0.28 0.41
2 1/2″ 64 300psi/21bar 900psi/63bar 0.39 0.58
3″ 76 250psi/17bar 750psi/51bar 0.50 0.75
3 1/2″ 91 175psi/12bar 525psi/36bar 0.65 0.97
4″ 103 175psi/12bar 525psi/36bar 0.76 1.14
4 1/4″ 117 175psi/12bar 525psi/36bar 0.84 1.25
5″ 127 175psi/12bar 525psi/36bar 0.95 1.42
6″ 154 175psi/12bar 525psi/36bar 1.16 1.73
