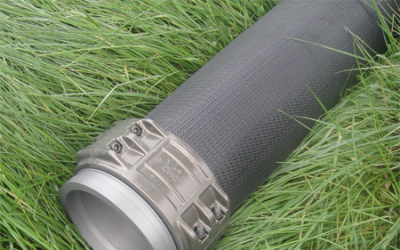

Construction: Circular polyester weave extruded internally and externally with NBR-PVC.
Hose shall be made from 100% high tenacity synthetic yarn circular woven and completely, protected and locked-in by tough highly resistant synthetic nitrile rubber, forming a single homogenous construction without the use of glues or adhesives of any type.
Lining Properties:
a. Ultimate Tensile Strength:
Tensile strength of the lining and cover shall not be less than 1500 psi (10,500 kpa ).
b. Ultimate Elongation:
400% minimum.
c. Accelerated Aging Test
The tensile strength and ultimate elongation of the vulcanized rubber compound which has been subjected to the action of oxygen at a pressure of 300 psi +/- 10 psi , (2100kpa +/- 70kpa) and temperature of 70 degrees centigrade +/-1 degree centigrade (158 F +/- 18 F ) for a period of 96 hours shall be , greater than 60% of the original properties stated.
Color:Black ribbed
Temperature range:From -20 C deg to 80 C deg (-4 F deg to 176 F deg)
Elongation at WP:<1.5%
Expansion at WP:<6%
Abrasion:6000 DIN cycles
Standard Length: 660ft
Applications: Suitable for use and recommended for INDUSTRIAL and AGRICULTURE applications in:
Dewatering and operations
Frac water transfer
Refineries & chemical plants-(Resists Aromatics), Oils, Medium and Heavy Hydrocarbons, Diesel Fuels & Many Chemicals In Solution
Liquid Transfer Water, Liquid Manure, Industrial Sludges & Slurries, Contaminated Liquids, Fertilizers,
*Not recommended or approved for fire fighting.
Comparable to
Oroflex 20 of Tipsa, Agroflex of Key, etc.
|
|
|
|
|
---|---|---|---|---|
8″ | 0.175 | 3.5 | 600 | 89,000 |
10″ | 0.175 | 4.5 | 600 | 100,100 |
12″ | 0.18 | 3.4 | 450 | 134,000 |
