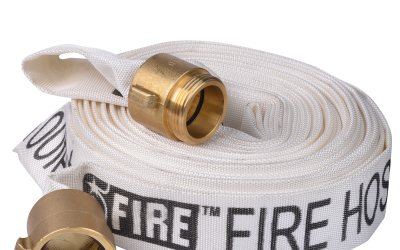

PU lined Rack Hoses, Single Jacket Designed for Hose Rack
Rackman U is designed for interior standpipe fire hose. with American standards. Rackman U is recommended for American market.
Rackman U hose is normally installed in hose cabinets and can be ordered prefolded for ease of installation.
Upon delivery, the hose shall be guaranteed for a period of five years against defects in material and workmanship.
Usually Rack U is folded. In some countries other than USA, Rack U is coiled.
Application: Suitable for pin rack service /emergency fire fighting, etc. This hose is not for wash-down duties or any other multi-use application
Inner tube: Polyurethane lining
Jacket: Single Jacket, circular woven polyester jacket, plain weave, warp yarn is made of spun polyester yarn, strips available per request
Operating Temperature Range: -40° to 150°F (-40° to 65°C)based on water
Standard Color: White (no coating), yellow, red, other colors (coated with Durablux™) available per request.
Standard Length: 50ft, 75ft, 100ft; other lengths available per request;
Couplings: Aluminum or Brass NH/NST couplings
Standards: Meets and exceeds NFPA14, UL219, FM2111, EN14540 or DN14811 etc.
Hose ID | Working Pressure | Bursting Pressure | |
Inch | mm | PSI/bar | PSI/bar |
1 1/2″ | 39 | 200/14, 250/17 | 600/42, 750/51 |
2 1/2″ | 65 | 200/14, 250/17 | 600/42, 750/51 |
