Storz FLC

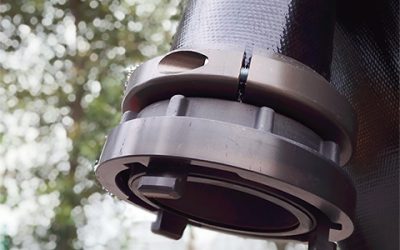

Forged Aluminum Storz coupling with Lock button and Bolt-on Clamps
Specification
OD of Shank | Weight | type of fasten hoses |
4″ (103mm) | 3 pieces of bolts-on clamps at each end | |
5″ (125mm) | 3 pieces of bolts-on clamps at each end | |
6″ (153mm) | 3 pieces of bolts-on clamps at each end |
Anodization is optional upon customer’s request. Anodization can increase the hardness of couplings and good-looking.
Storz CLC

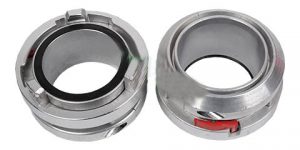

Casted Aluminum Storz coupling with Lock button and Bolt-on Clamps
Storz NL

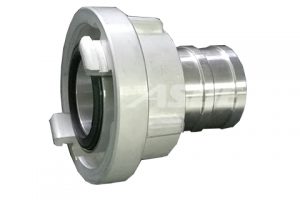

Aluminium storz couplling No Lock
Both forged Storz NL couplings and casted Storz NL couplings are available for customers’ option. Forged Storz NL couplings are stronger than casted storz NL couplings but casted storz couplings are more economic. Customers can choose proper storz couplings according to end-users’ technical requirement and their budget.
Specification of Forged Storz NL Couplings
Size | Materials | Length of Shank (mm) | OD of Shank (mm) |
1″ | 6061T6 Alum | 53 | 24.5 |
1 1/2″ | 6061T6 Alum | 60 | 38.0 |
2″ | 6061T6 Alum | 90 | 52.0 |
2 1/2″ | 6061T6 Alum | 70 | 64.8 |
3″ | 6061T6 Alum | 125 | 75.0 |
Specification of Casted Storz NL Couplings with Long Shank
Size | Type | Length of Lug (mm) | OD of Shank (mm) | Length of Shank (mm) |
1″ | 25-D | 31 | 25 | 53 |
1 1/2″ | 38 | 51 | 25 | 90 |
32 | 90 | |||
38 | 85 | |||
2″ | 52-C | 66 | 32 | 90 |
38 | 90 | |||
42 | 90 | |||
45 | 90 | |||
52 | 90 | |||
2 1/2″ | 65 | 81 | 38 | 95 |
52 | 95 | |||
63 | 115 | |||
65 | 95 | |||
70 | 95 | |||
3″ | 75-B | 89 | 52 | 125 |
63 | 125 | |||
70 | 125 | |||
75 | 125 |
Specification of Casted Storz NL Couplings with Short Shank
Size | Type | Length of Lug (mm) | OD of Shank (mm) | Length of Shank (mm) |
1″ | 25-D | 31 | 25 | 53 |
1 1/2″ | 38 | 59 | 45 | 75 |
2″ | 52-C | 66 | 42 | 55 |
52 | 55 | |||
2 1/2″ | 65 | 81 | 65 | 60 |
3″ | 75-B | 89 | 65 | 85 |
75 | 60 |

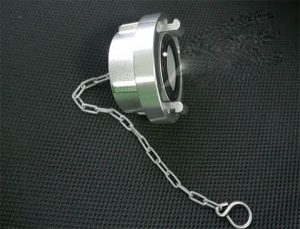

Storz Cap
Forged Storz Cap
Size | Materials |
1″ | 6061T6 Alum |
1 1/2″ | 6061T6 Alum |
2″ | 6061T6 Alum |
2 1/2″ | 6061T6 Alum |
3″ | 6061T6 Alum |
Casted Storz Cap
Size | Type | Length of Lug |
1″ | 25-D | 31 mm |
1 1/2″ | 38 | 51 mm |
1 3/4″ | 45 | 59 mm |
2″ | 52-C | 66 mm |
2 1/2″ | 65 | 81 mm |
3″ | 75-B | 89 mm |
Application
Applied to connect PU-covered layflat hoses, Nitrile rubber layflat hoses or jacketed fire hoses.
