Description

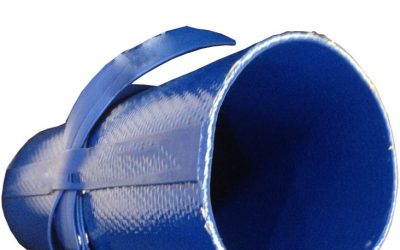

Welline is made from extruded thermoplastic polyether based polyurethane (TPU) with excellent wear & tear properties. The reinforcement is made from circular woven filament polyester yarn. The “extrusion through the weave” production method gives a very strong bonding between cover and lining as well as firmly encapsulating the woven polyester.



Welline meet the following potable water certificatons:

Meet NSF 61 standard, USA



Applications

  • Water Utility
  • Water Well



Features

  • A simpler, safer and more efficient way to install Submersible pumps. Offering greater cost savings and superior hydraulic performance advantages over Poly Pipe / PVC Pipe, Fiber Glass and Steel Riser Pipes.

  • Superior abrasion resistance

  • Extremely hardwearing and durable for long service life

  • Resistance to oil, fuel and a wide range of chemicals (see resistance table in technical appendix)

  • Resistance to weathering and ozone

  • Flexible, lightweight and good handling

  • Excellent cold flexibility

Comparable to

  • Well Riser of Tipsa
  • Boreline of Crusader/Hose Solution

Color

  • Blue (Other color available of request)

Technical Sepcification



Nominal Size

1”

1 1/2”

2”

3”

4”

5”

6”

8”

Inside Diameter

24mm

40mm

50mm

76mm

102mm

127mm

152mm

204mm

Burst Pressure

70 bar
980 psi

65 bar
920 psi

65 bar
920 psi

60 bar
850 psi

58 bar
820 psi

58 bar
800 psi

58 bar
800 psi

42 bar
600 psi

Operating Pressure

35 bar
500 psi

30 bar
425 psi

30 bar
425 psi

25 bar
350 psi

25 bar
300 psi

22 bar
310 psi

22 bar
310 psi

15 bar
210 psi

Tensile Strength

1,400 kgs
3,000 lbs

3,000 kgs
7,000 lbs

4,000 kgs
9,000 lbs

7,000 kgs
16,000 lbs

12,000 kgs
6,000 lbs

15,000 kgs
33,000 lbs

20,000 kgs
44,000 lbs

21,000 kgs
46,000 lbs

Weight

0.20 kg/m
0.14 lbs/ft

0.33 kg/m
0.22 lbs/ft

0.55 kg/m
0.37 lbs/ft

0.95 kg/m
0.64 lbs/ft

1.40 kg/m
0.94 lbs/ft

1.70 kg/m
1.14 lbs/ft

2.50 kg/m
1.68 lbs/ft

3.42 kg/m
2.30 lbs/ft
