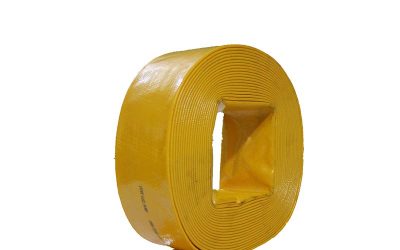

This hose is designed for water discharge.

Construction: Circular polyester weave extruded internally and externally with PVC-NBR.

Hose shall be made from 100% high tenacity synthetic yarn circular woven and completely, protected and locked-in by tough highly resistant synthetic nitrile rubber, forming a single homogenous construction without the use of glues or adhesives of any type.

Smooth cover for flexibility and abrasion resistant.

Color:Yellow or Red
Temperature range:-40° to 150°F (-40° to 65°C)
Elongation at WP:<1.5%
Expansion at WP:<5%

Standard Length: 50ft, 100ft, 20m, 30m

Applications:

• Water Discharge

• Temporary installations (by-passes)

• Construction

• Irrigation



Comparable to: Ironside, Spiraflex, and SF20/SF50 etc.

Nominal ID Wall thickness Weight Pressure rating
Inches mm Inches mm lbs/ft kg/m psi/bar
1 1/2″ 38 0.09″ 2.2 0.20 0.30 250psi/17bar, 200psi/14bar
2″ 52 0.11″ 2.7 0.33 0.49 250psi/17bar, 200psi/14bar
2 1/2″ 64 0.12″ 2.9 0.42 0.63 250psi/17bar, 200psi/14bar
3″ 78 0.12″ 3.0 0.48 0.72 250psi/17bar, 200psi/14bar
4″ 104 0.13″ 3.2 0.75 1.12 200psi/14bar, 150psi/10bar
6″ 154 0.16″ 3.9 1.50 2.24 200psi/14bar, 150psi/10bar
8″ 205 0.17″ 4.4 2.25 3.36 150psi/10bar
10″ 255 0.18″ 4.5 3.00 4.47 150psi/10bar
12″ 305 0.18″ 4.5 3.20 4.92 150psi/10bar
